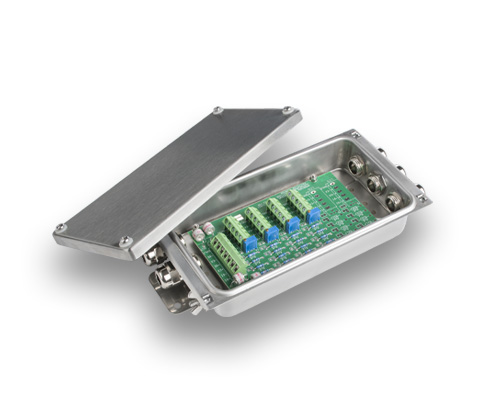

Load Cell Junction Boxes
Signal Summation & Multi-Cell Integration Solutions
In weighing systems with multiple load cells, accurate signal management is essential. Junction boxes serve as the central hub connecting all load cells to a single weight indicator, solving critical challenges that arise when multiple sensors must work together.
VPG Force Sensors junction boxes eliminate the complexity of multi-cell integration by providing integrated signal summation, trimming capability, environmental protection, and power distribution—all in a compact, sealed enclosure.
What does a Load Cell Junction Box do?
A load cell junction box (summing box) connects multiple load cells to a single weighing system and performs three critical functions:
- Signal Summation: Collects signals from all connected load cells and combines them into a single output for your weight indicator.
- Signal Conditioning & Trimming: Contains potentiometers that adjust each load cell's signal to ensure all cells contribute equally.
- Power Distribution & Environmental Protection: Distributes excitation voltage and houses electrical connections in a sealed enclosure.
Load cell junction boxes come in different types to suit various applications. Passive analog junction boxes are simple and cost-effective, requiring no external power. Active analog junction boxes include signal amplification, making them ideal for long cable runs. Digital junction boxes are microprocessor-based and provide advanced features such as Ethernet connectivity, data logging, and PLC integration, offering more flexibility for modern weighing systems.
Core Features & Capabilities
|
Feature |
Benefit |
|
Signal Summation |
Combine 2-12+ load cell outputs into single unified display |
|
Signal Trimming |
Equalize load cell outputs for accurate readings regardless of load placement |
|
Analog & Digital Options |
Passive, active, or digital models for simple or complex systems |
|
Environmental Protection |
IP65-IP69K ratings for harsh industrial environments |
Industry Applications for Junction Boxes
Platform & Floor Scales
Heavy-duty scales must deliver consistent readings regardless of load placement. Junction boxes with integrated trimming eliminate corner-load errors.
Tank & Vessel Weighing
Multi-cell junction boxes handle 4-8 load cells with uneven load distribution, delivering ±0.5% accuracy across the operating range.
Hopper & Bin Scales
Sealed, weatherproof junction boxes maintain accuracy in outdoor and harsh industrial environments with IP67 and IP68 ratings.
Get Expert Guidance for Your Application
Finding the right load cell for your system requires careful consideration of capacity, accuracy, environment, and installation factors. Our experienced engineers are ready to help you choose the optimal solution.
Connect with our technical team to review your application and get personalized product recommendations.
Access the VPG Force Sensors Databook 2024/2025 for detailed specifications, drawings, and application guidance.
Visit our online shop for immediate product availability and quick U.S. shipping on all orders.
Need a specialized design? Our engineers create custom load cells tailored to your application requirements.
